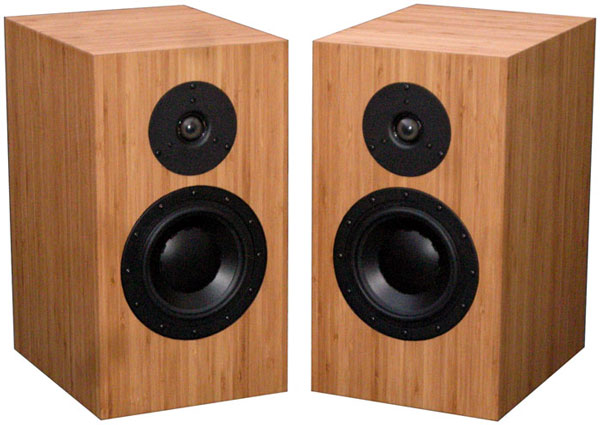

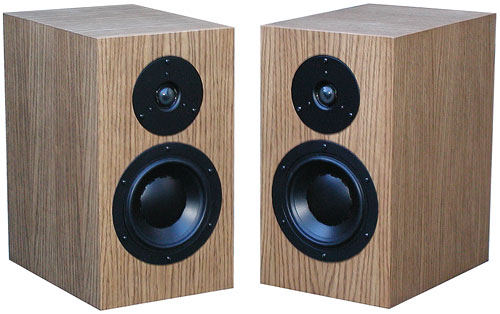

Fritz Grove
Technical Specifications

Frequency Response:

42 Hz to 20 kHz +/- 3 db

Impedance:

8 ohms Nominal

Sensitivity:

86 dB (at 1 watt, 2.83V, @1 meter)

Bass/Midrange Driver:

6 1/2 inch one piece polypropylene cone, 3 inch underhung voice coil, butyl rubber surround, die cast frame. Bass reflex loaded- rear port

Tweeter:

1 inch ferrofluid cooled specially treated silk dome with high power hexagonal shaped Aluminum voice coil wire and damped acoustic rear chamger, Aluminum face plate.

Crossover:

Series crossover without any capacitors in the circuit with the tweeter. Acoustic Reality Series Crossovers

Dimensions/Weight:

16" High, 9" Wide, 12" Deep, 28 lbs.

Recommended Amplifiers:

25 to 150 watts

For more information or to arrange a home audition, e-mail Fritz at info@fritzspeakers.com or call 310-379-8190
