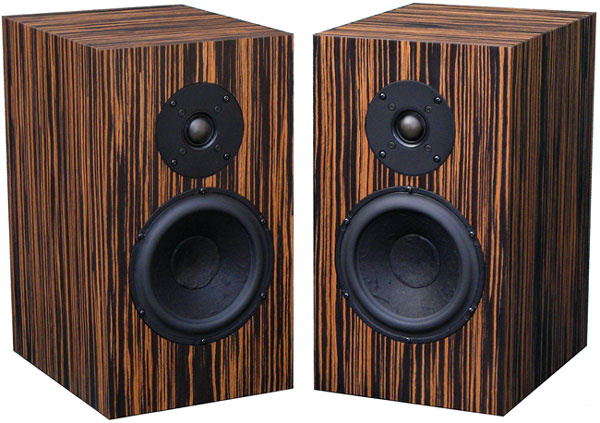

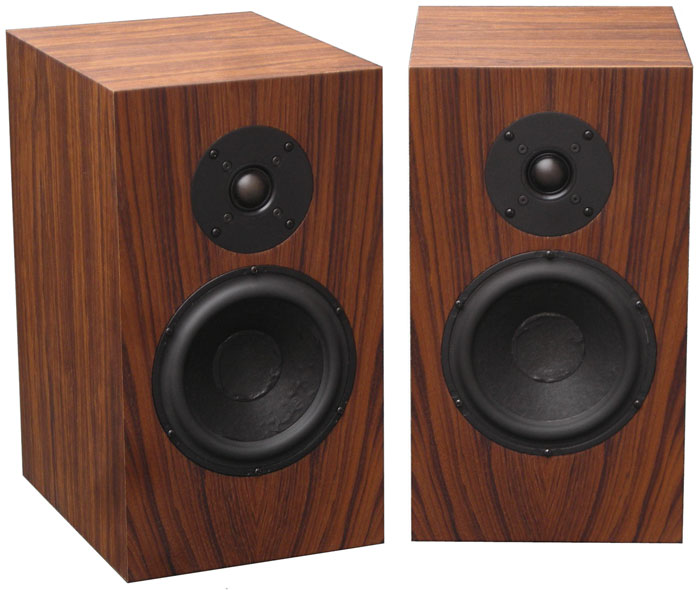

Fritz CARBON 7
2 Way vented stand mounted monitor

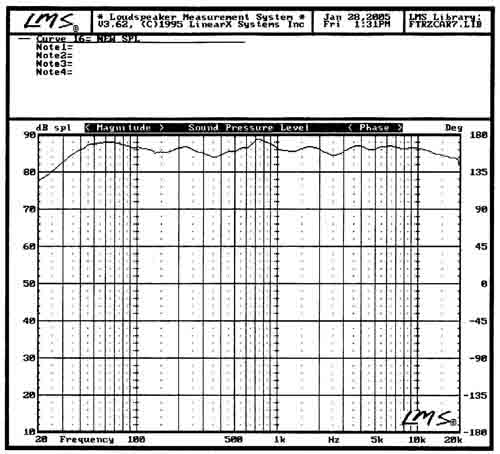

Frequency Response:

39Hz-20Khz +/- 3 db


8 Ohms nominal


87 db (1 Watt, 2.83 V @ 1 Meter)

Bass/Midrange Driver:

7" Carbon Graphite Fiber/Paper Pulp composite cone with non-resonant low loss butyl rubber surround & Kapton voice coil former & die cast frame with massive magnet, bass reflex loaded- rear port


28 mm 1.1 inch hand coated textile soft dome with non-resonant rear chamber & ferro-fluid cooling, aluminium face plate.


Series crossover without any capacitors or resistors in the circuit with the tweeter. Acoustic Reality Series Crossovers


16H x 9W x 12D, 30 lbs (each)

Recommended Power:

30 - 150 Watts RMS, without clipping

For more information or to arrange a home audition call 310-379-8190
