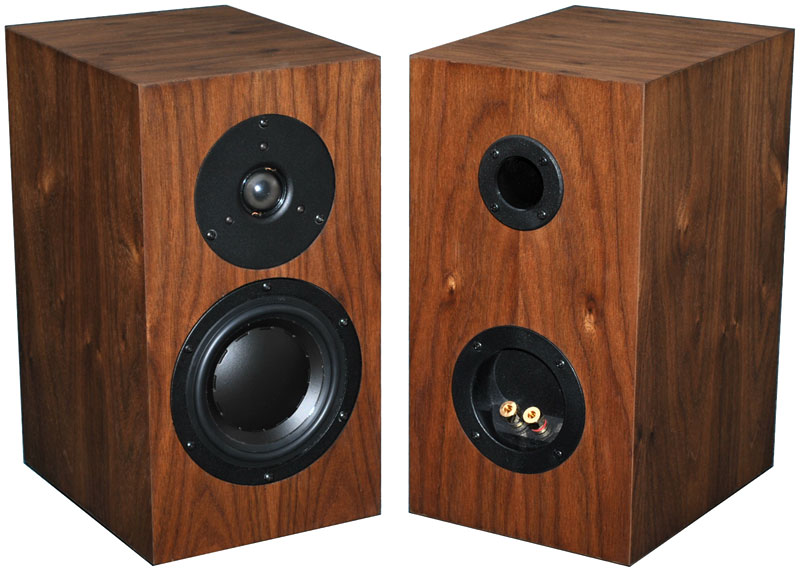

Fritz Mini
2 Way vented stand mounted Loudspeaker

Frequency Range:



8 Ohms nominal


85 db (1 Watt, 2.83 V @ 1 Meter)

Bass/Midrange Driver:

The 5 1/4 inch mid-bass driver features a die cast frame, butyl rubber surround, one piece polypropylene cone and huge 3 inch voice coil. The unique motor structure uses magnets located inside the underhung voice coil


1 inch ferrofluid cooled specially treated silk dome with high power hexagonal shaped Aluminum voice coil wire and damped acoustic rear chamber, Aluminum faceplate


Series crossover without any capacitors or resistors in the circuit with the tweeter
Acoutic Reality Series Crossovers


12 1/2H x 7W x 9D, 16lbs (each)

Recommended Power:

15-120 Watts RMS, without clipping

For more information or to arrange a home audition call 310-379-8190
