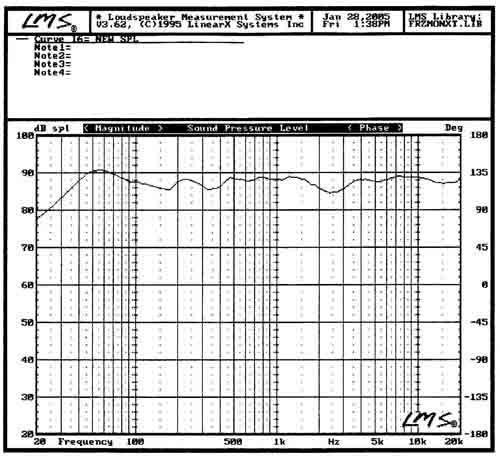

Frequency Response:

42 Hz to 40 kHz +/- 3 db

Impedance:

8 ohms Nominal

Sensitivity:

87.5 dB (at 1 watt, 2.83V, @1 meter)

Bass/Midrange Driver:

6 1/2" Mineral-filled Polypropylene composition driver, cast magnesium alloy chassis with large voice & magnet, bass reflex loaded rear port, available sheilded for Home Theater systems

Tweeter:

1" ring radiator with dual concentric diaphragm with wave-guide center plug

Crossover:

Internal, utilizing large, low loss inductors and metalized polypropylene capacitors at 2700 Hz, 12dB tweeter, 12 dB woofer

Dimensions/Weight:

16" High, 8" Wide, 10" Deep, 20 lbs.

Recommended Amplifiers:

20 to 150 watts
